ABOUT

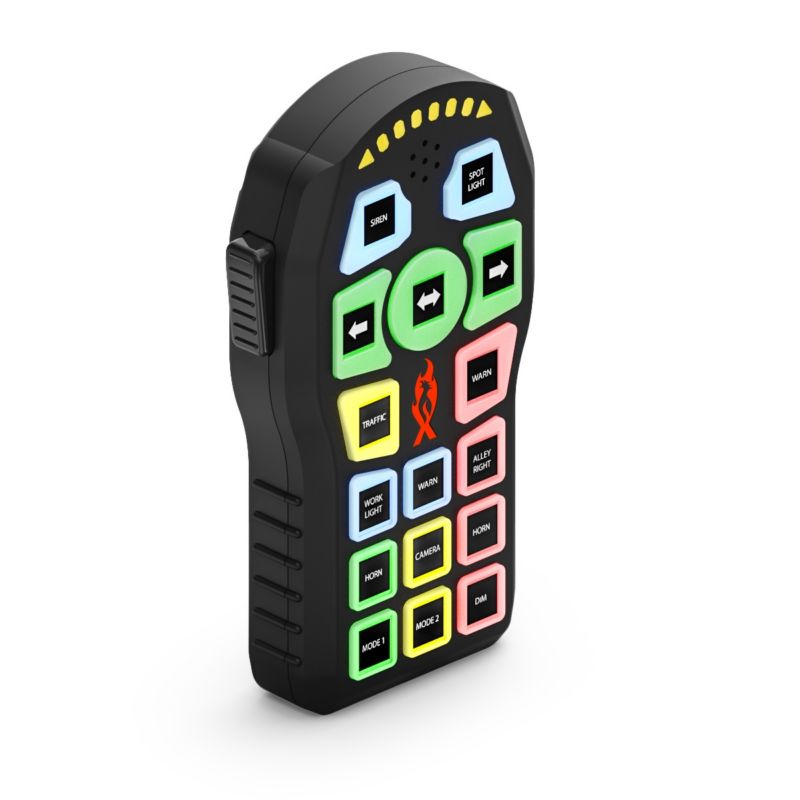

The SynQ-H is a compact controller built for operators who need full system control in a small, easy-to-carry form factor. With 16 programmable buttons and five selectable backlight colors, the SynQ-H keeps essential functions close at hand without requiring dashboard space. Its ergonomic handheld design and one-second boot time make it ideal for confined cabins, tactical units and mobile users who need reliable access on the move. Despite its size, the SynQ-H pairs with the SynQ Relay to deliver the same high-performance system power as larger controllers, including a 200W dual-tone siren, 15+ siren tones, 20+ audio commands and 22 total outputs. Fully PC-programmable, it supports custom modes, lighting behavior and auxiliary workflows while maintaining compatibility with up to 96 Q Serial or 16 Quantum 2.0 devices.
Specifications

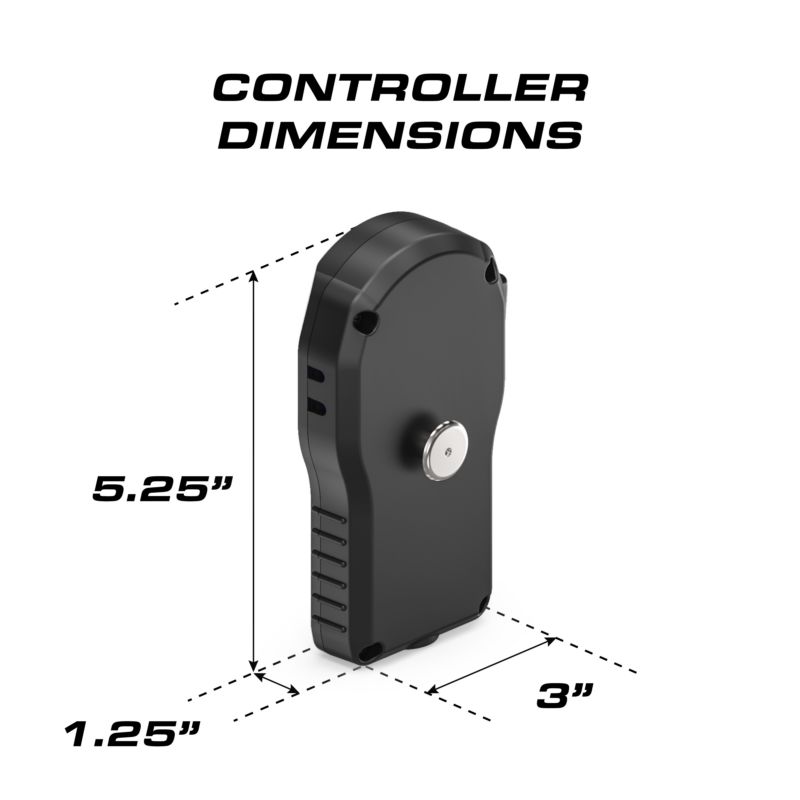

- Dimensions (Controller): 3" x 1.25" x 5.25"

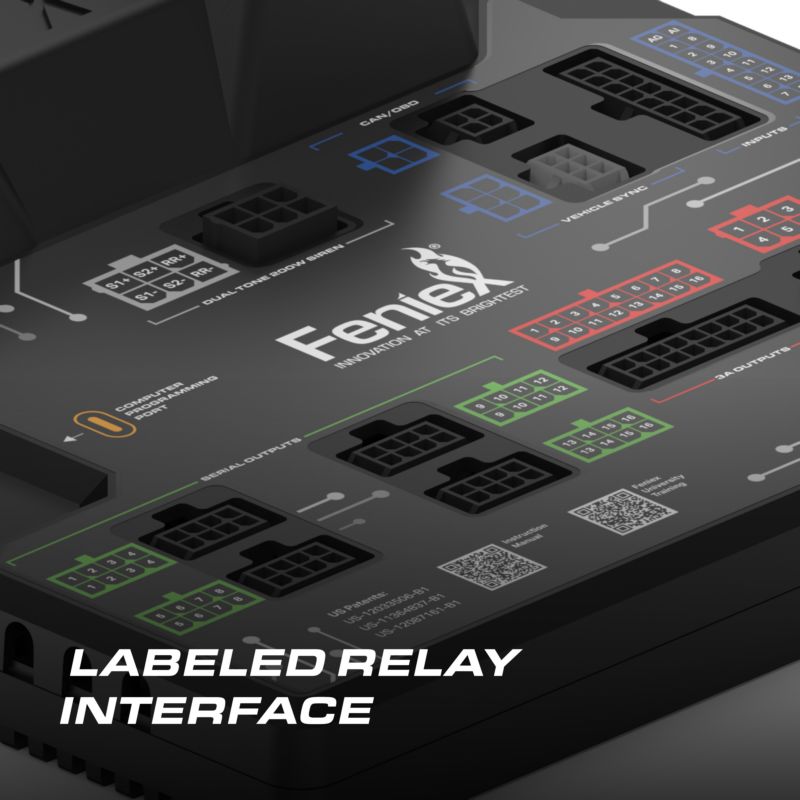

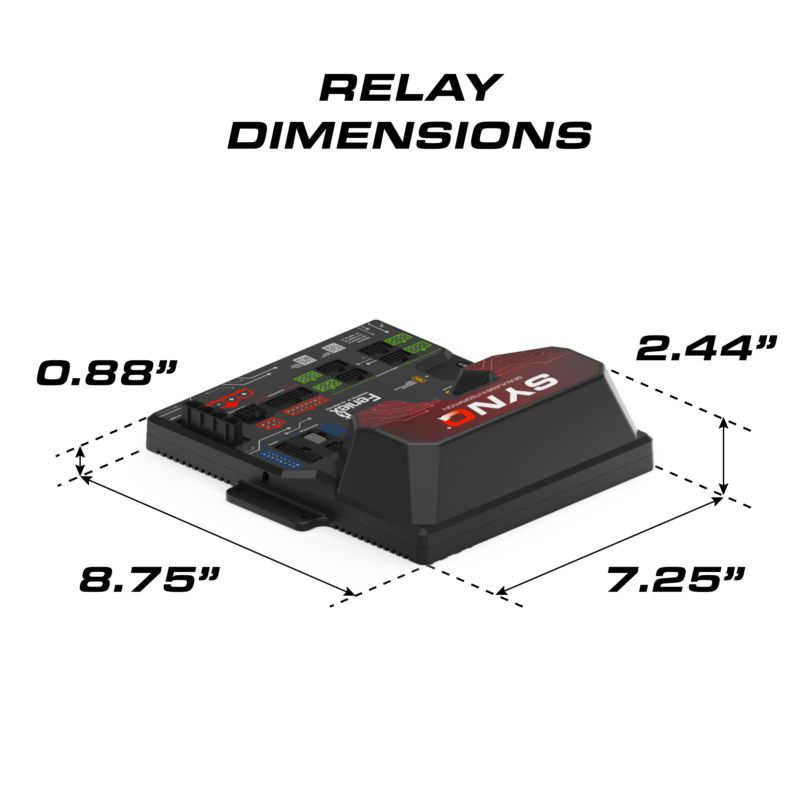

- Dimensions (Relay): 7.25" x 8.75" x 2.44"
- Input Voltage: 12-18 VDC
- Standby Current: 0.35 Amps
- Total Max Current: 115 Amps
- Low Current Output Rating: 3 Amps
- High Current Output Rating: 10 Amps
- 2 Year Manufacturer Warranty
Product Details
- 16 programmable buttons
- 5 LED button color options
- Standardized button size
- 4 button styles: Timer, Toggle, Multi-Press, Momentary

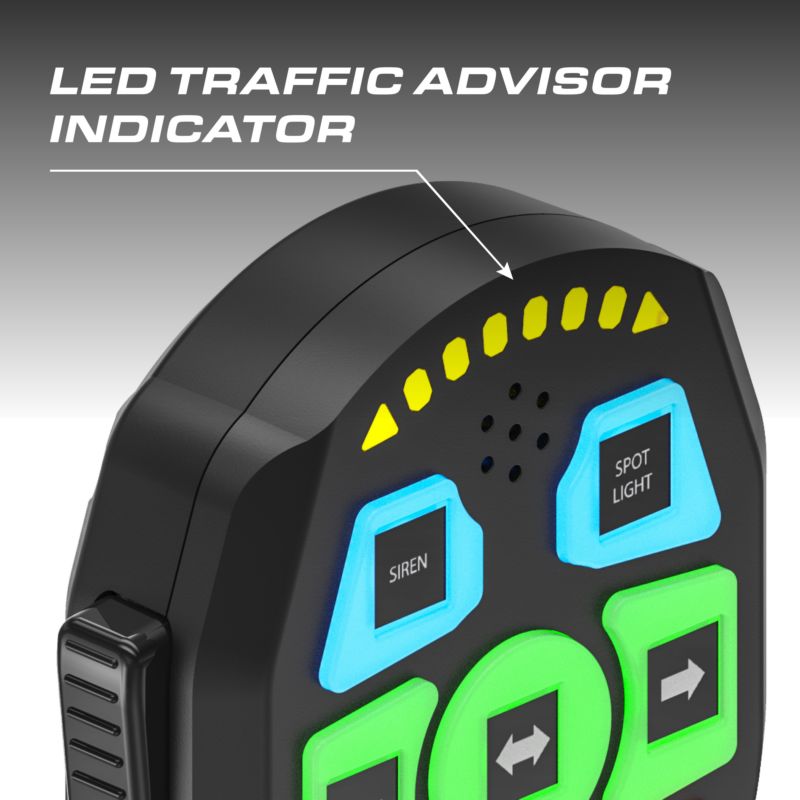

- 8 LED programmable traffic advisor indicators
- 15+ programmable siren tones
- 20+ audio commands
- 200W dual-tone siren
- Horn Ring, Park-Kill, Hands-Free, Radio Rebroadcast

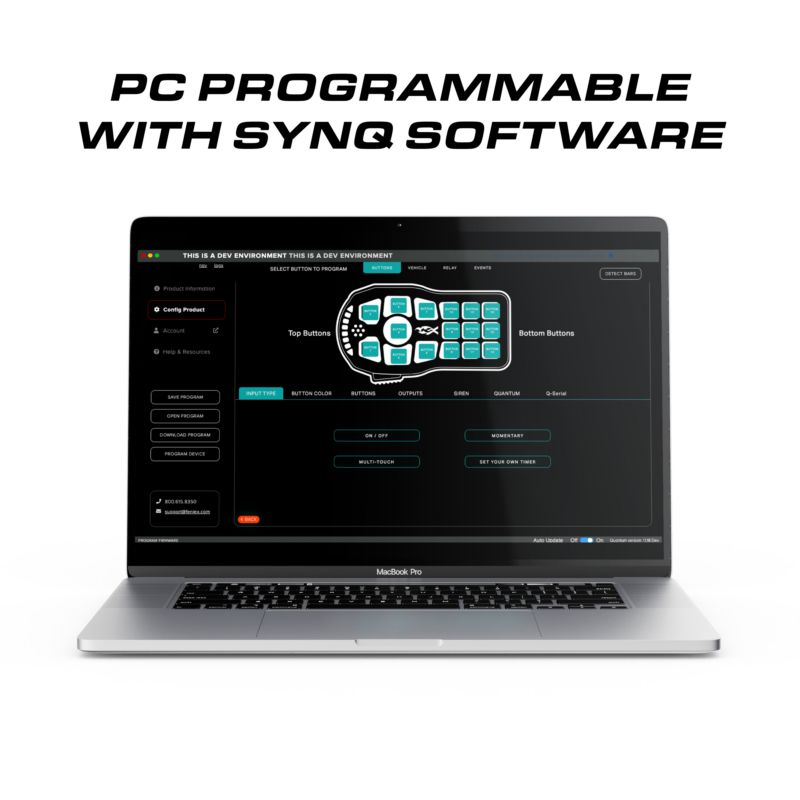

- PC programmable
- Firmware upgradable

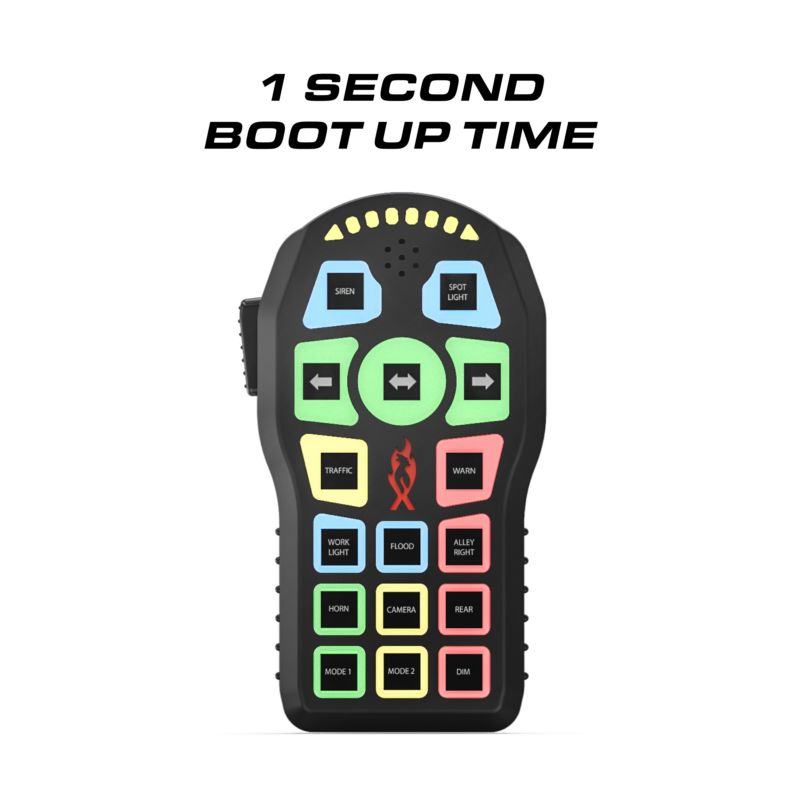

- 1-second boot time
- 12 low-current positive outputs
- 6 high-current positive outputs
- 4 low-current ground outputs
- 15 ft wire harness from controller to relay

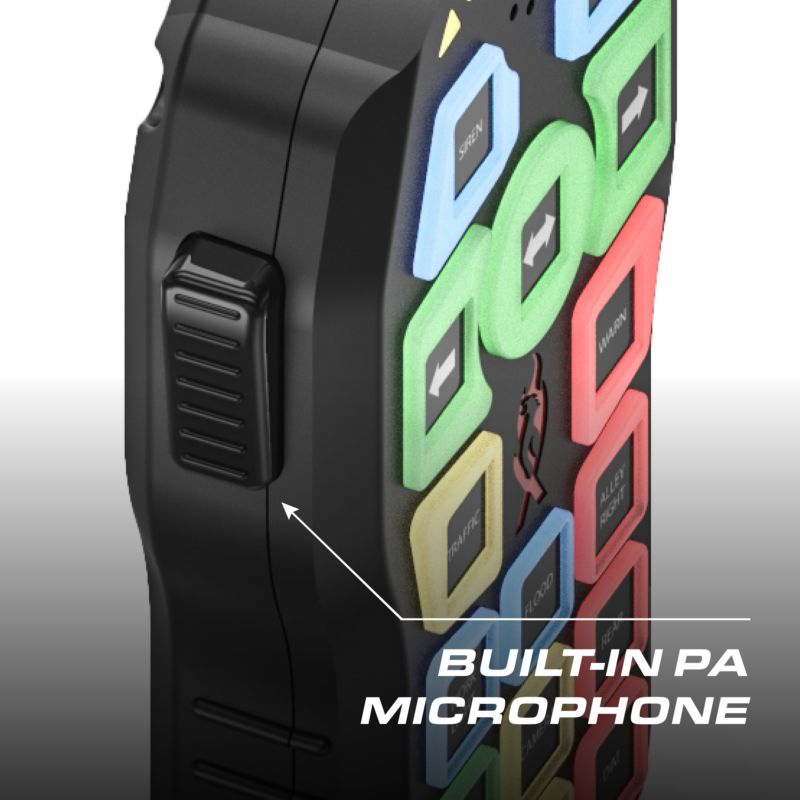

- Built-in PA mic

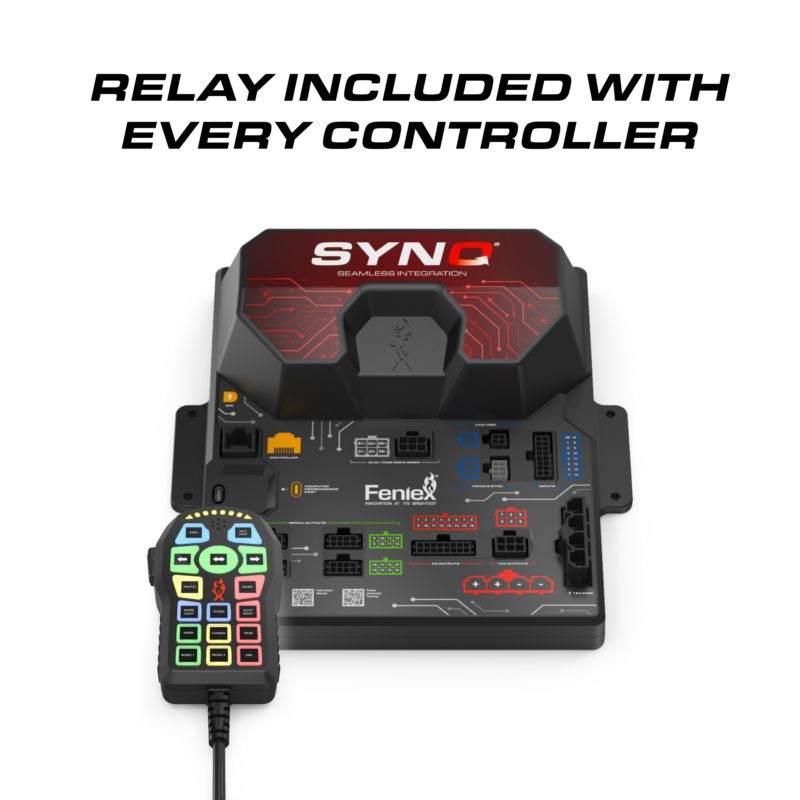

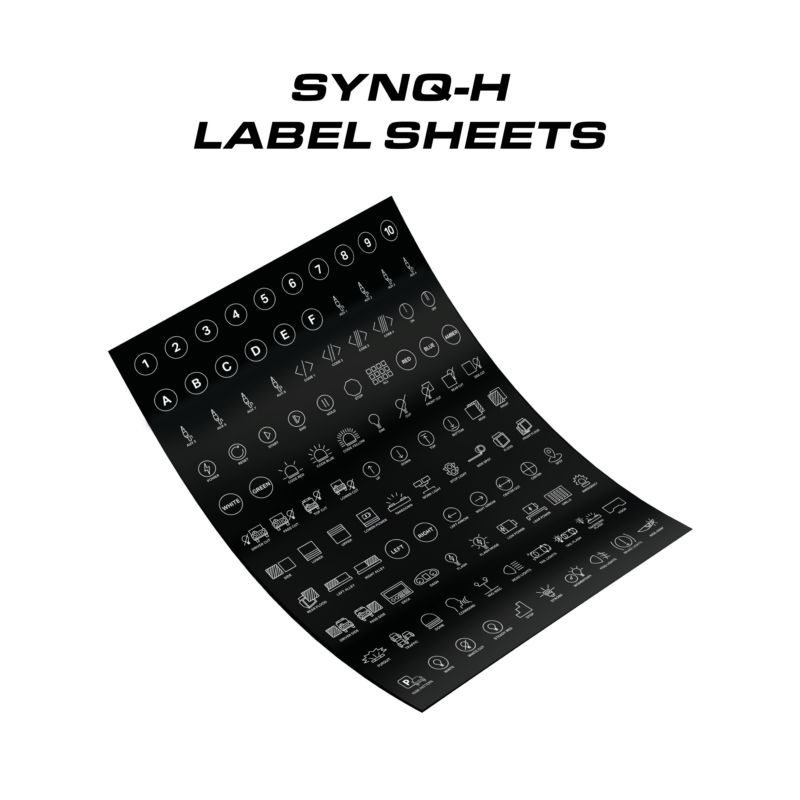

- Includes SynQ-H controller, SynQ Relay, 4 label sheets
- Supports up to 96 Q Serial lights or 16 Quantum 2.0 products
- Syncs all Quantum and Q Serial products
