ABOUT

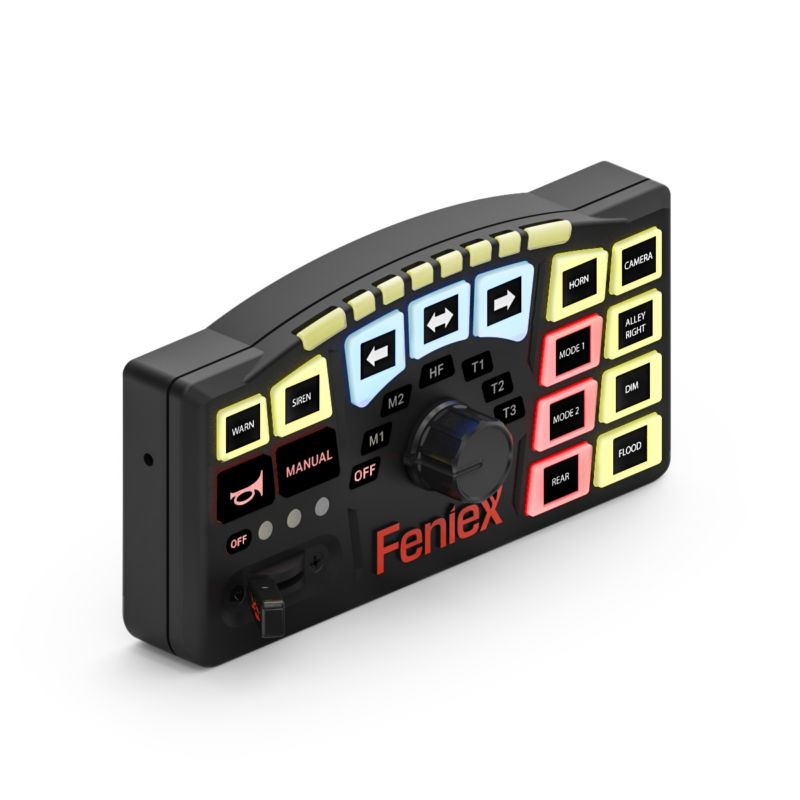

The SynQ-R enhances the SynQ platform with a 13-button layout, an integrated slide switch and a precision rotary knob for fast, fine-tuned adjustments in the field. Operators can quickly modify lighting intensity, scroll audio functions or activate custom modes with smoother control than traditional button-only systems. Five backlit color options ensure clear visibility in low-light environments, and the system boots in one second for immediate readiness. PaiRed with the SynQ Relay, the SynQ-R delivers a 200W dual-tone siren, 15+ siren tones and 20+ audio commands. Its PC-programmable interface supports detailed customization of lighting, auxiliary equipment and event-based behavior. With 22 total outputs, a 15 ft mic cable and compatibility with up to 96 Q Serial or 16 Quantum 2.0 products, the SynQ-R provides unmatched flexibility for agencies requiring precise, adaptive vehicle control.
Specifications

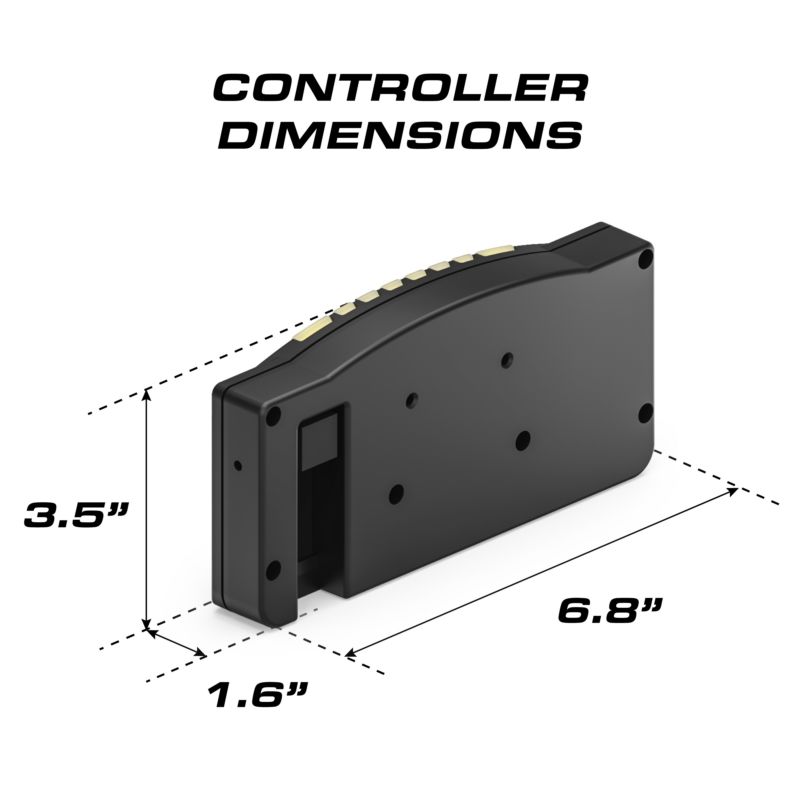

- Dimensions (Controller): 6.8" x 1.6" x 3.5"

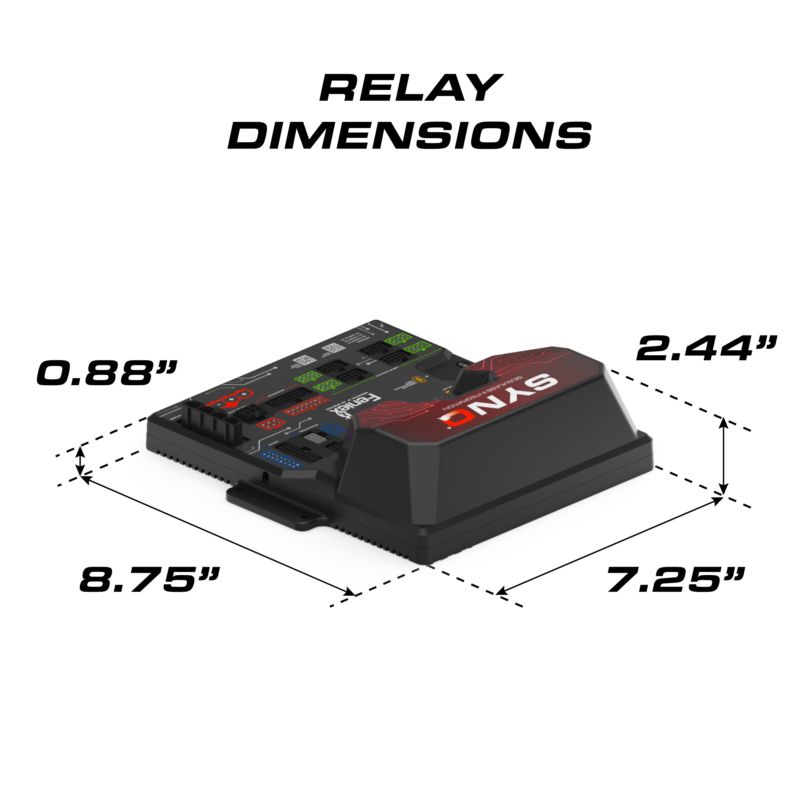

- Dimensions (Relay): 7.25" x 8.75" x 2.44"
- Input Voltage: 12-18 VDC
- Standby Current: 0.35 Amps total
- Max Current: 115 Amps
- Low Current Output Rating: 3 Amps
- High Current Output Rating: 10 Amps
- 2 Year Manufacturer Warranty
Product Details
- 13 programmable buttons
- 5 LED button color options
- Standardized button size
- 4 button styles: Timer, Toggle, Multi-Press, Momentary

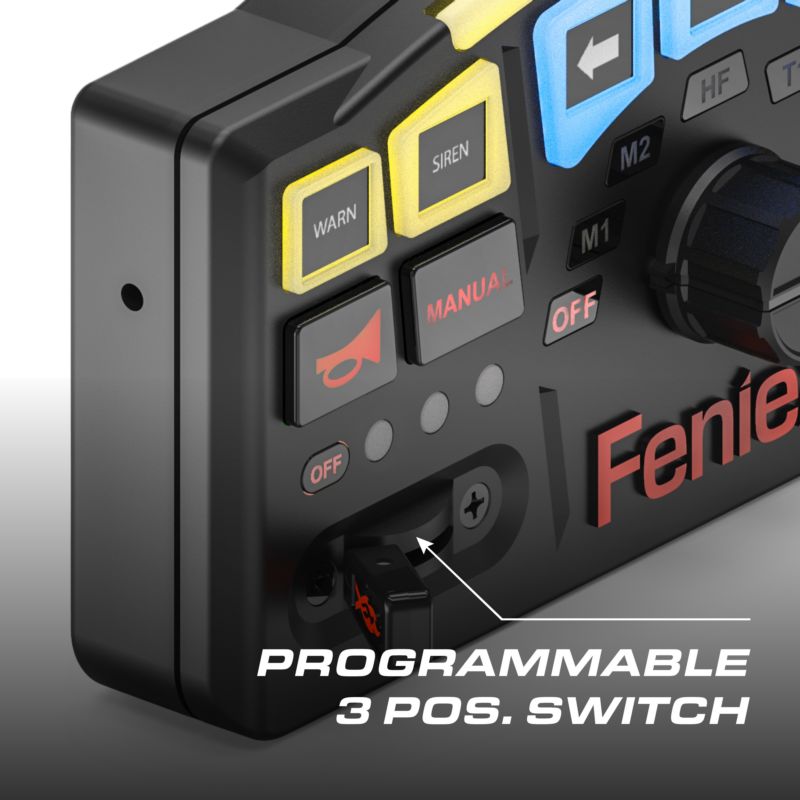

- 3-position slide switch
- Aluminum slide switch cap

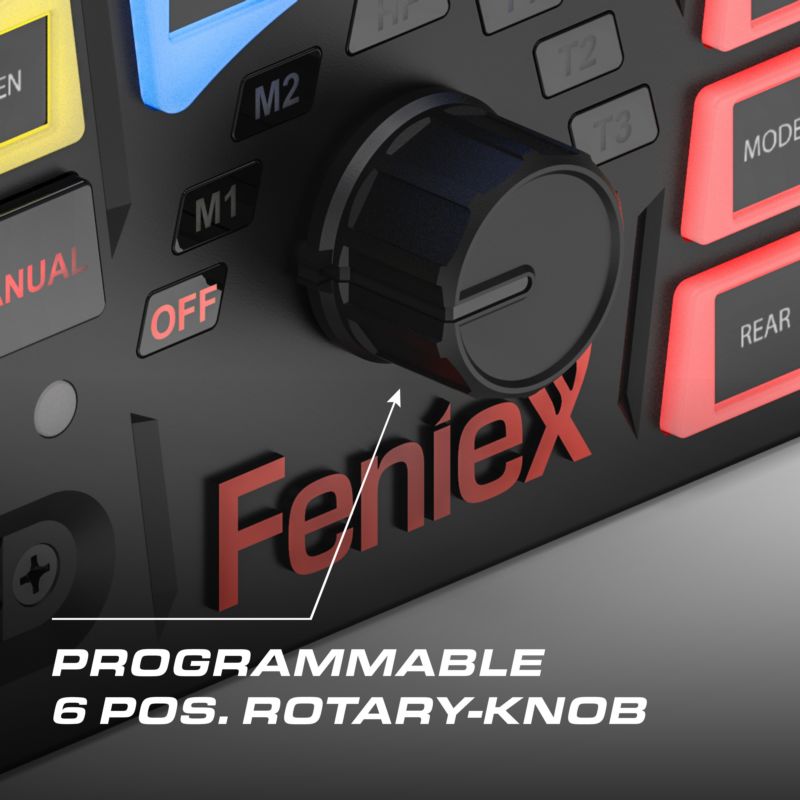

- 6-position rotary knob

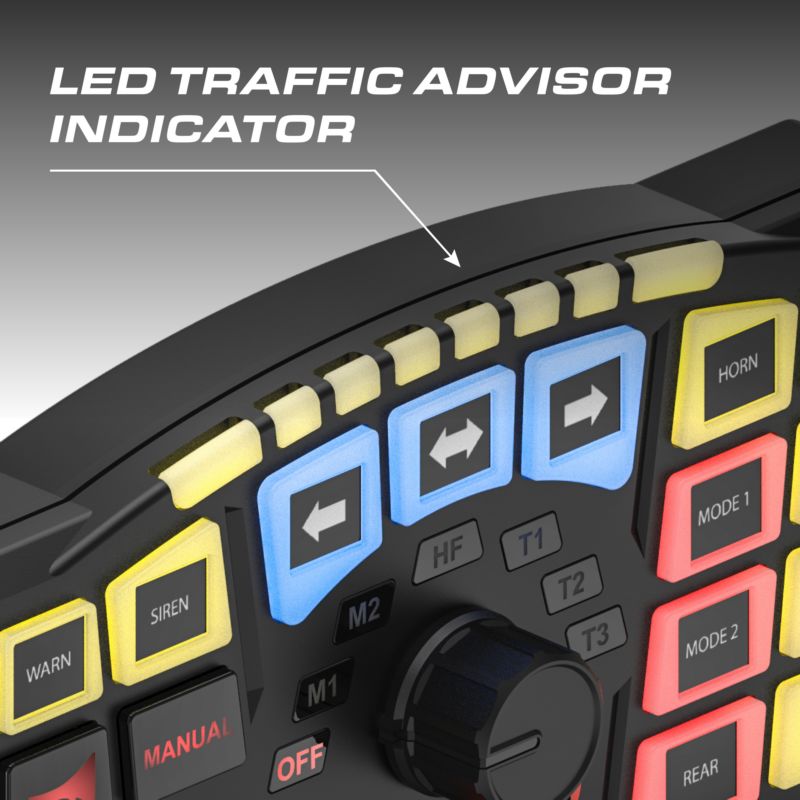

- 8 LED programmable traffic advisor indicators
- 15+ programmable siren tones
- 20+ audio commands
- 200W dual-tone siren
- Horn Ring, Park-Kill, Hands-Free, Radio Rebroadcast

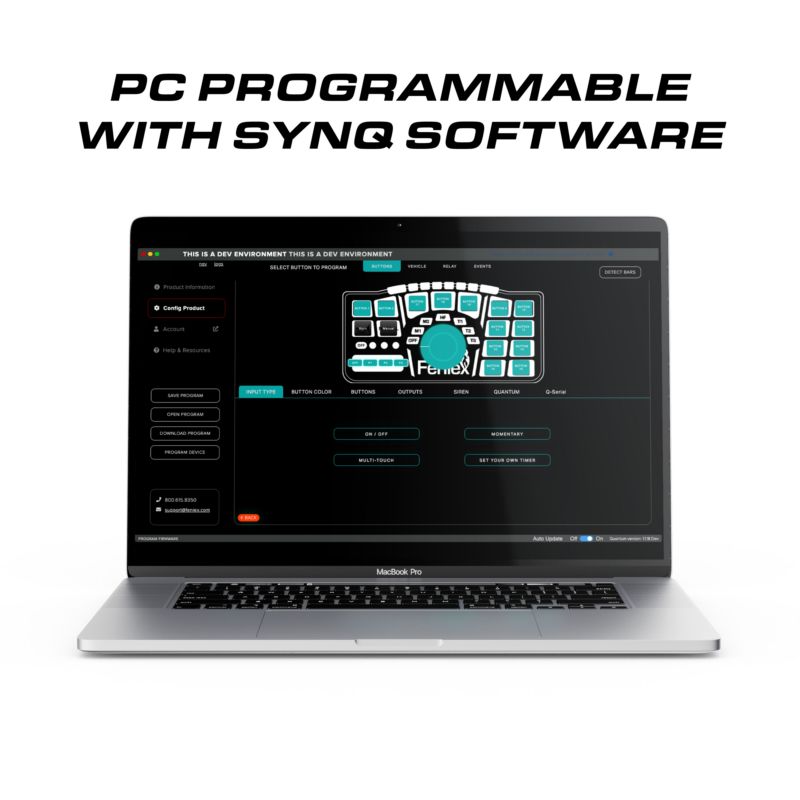

- PC programmable
- Firmware upgradable

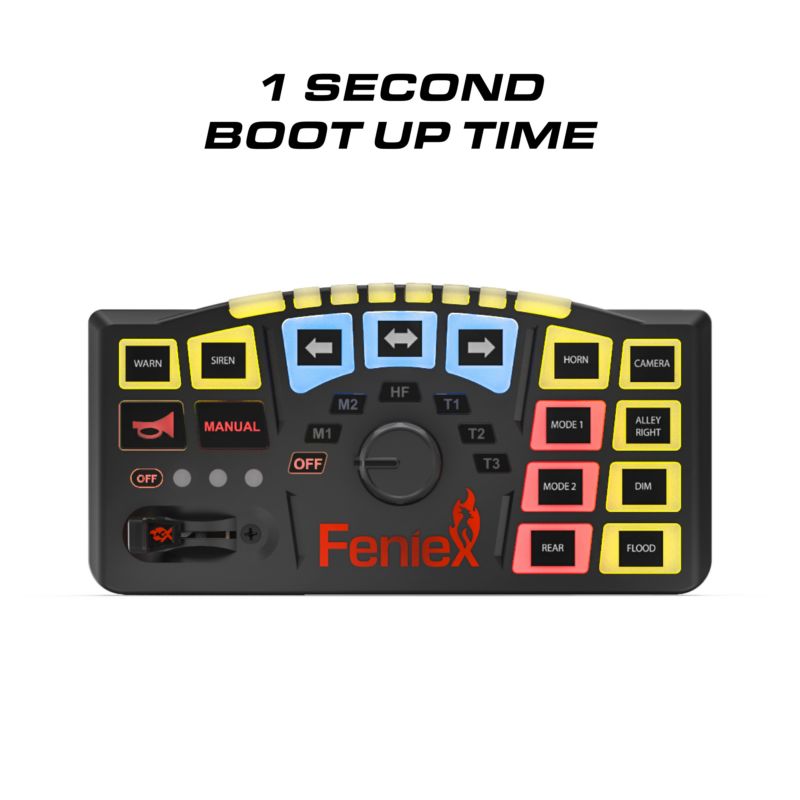

- 1-second boot time
- 12 low-current positive outputs
- 6 high-current positive outputs
- 4 low-current ground outputs
- 15 ft wire harness from controller to relay
- 15 ft PA mic cable

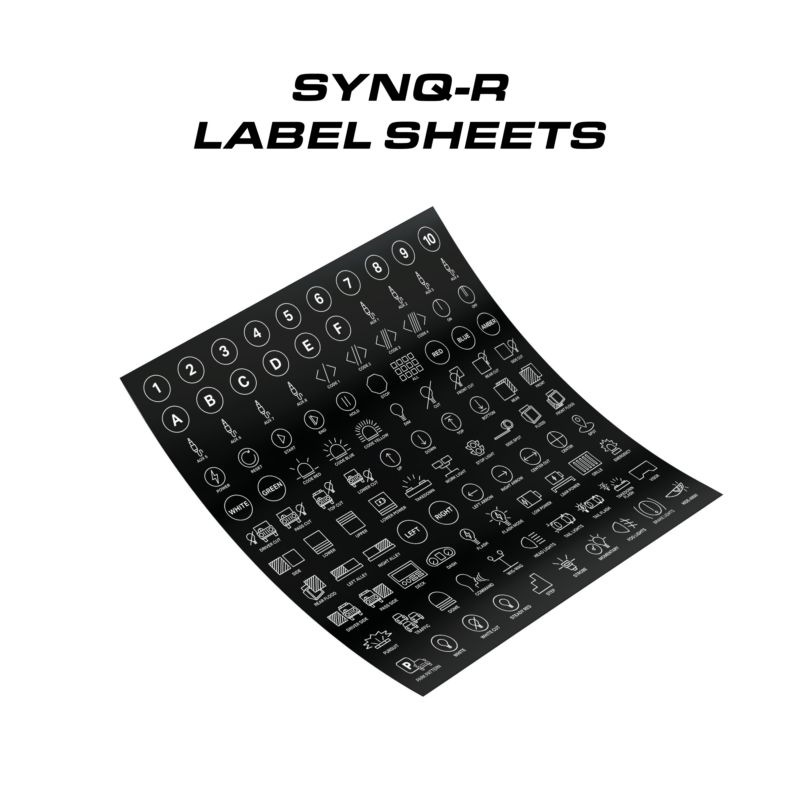

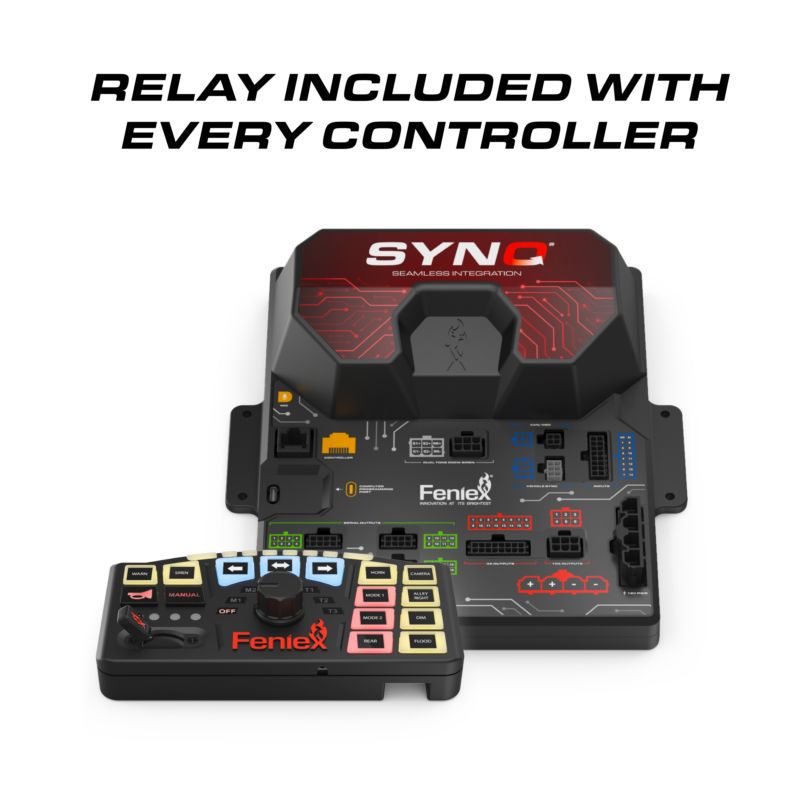

- Includes SynQ-R controller, SynQ Relay, 4 label sheets
- Supports up to 96 Q Serial lights or 16 Quantum 2.0 products
- Syncs all Quantum and Q Serial products
